Application

The cables are suitable for conduit wiring , especially in installations where fire, smoke and toxic fumes create potential threat.

Standard

BS EN 50525-3-41.

Technical Data

Voltage Rating : Uo / U - 450 / 750V
Harmonized Code : 1.5 mm.sq to 630 mm.sq stranded class 2 - H07Z-R
Temperature Range : -15°C to 90°C
Minimum Bending Radius
Upto 10 mm2 : 3 X Overall Diameter. 16 & 25 mm.sq : 4 X Overall Diameter. Above 25 mm.sq : 5 X Overall Diameter.

Cable Construction

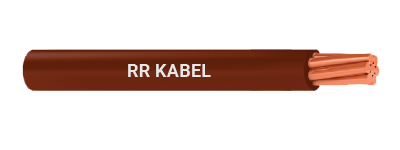

Conductor : Plain annealed copper conductor 1.5 mm.sq to 630 mm.sq stranded Cl. 2 complying with EN 60228
Insulation : LSZH (Low Smoke Zero Halogen) Type EI5 according to BS EN 50363-5

Cable Design Parameters

Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required:
02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green / yellow, 07 – white, 08 – violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey
